ORIZZONTI FRUIT-D – Disc Orchard Pruning Machine

ORIZZONTI FRUIT-D – Disc Orchard Pruning Machine

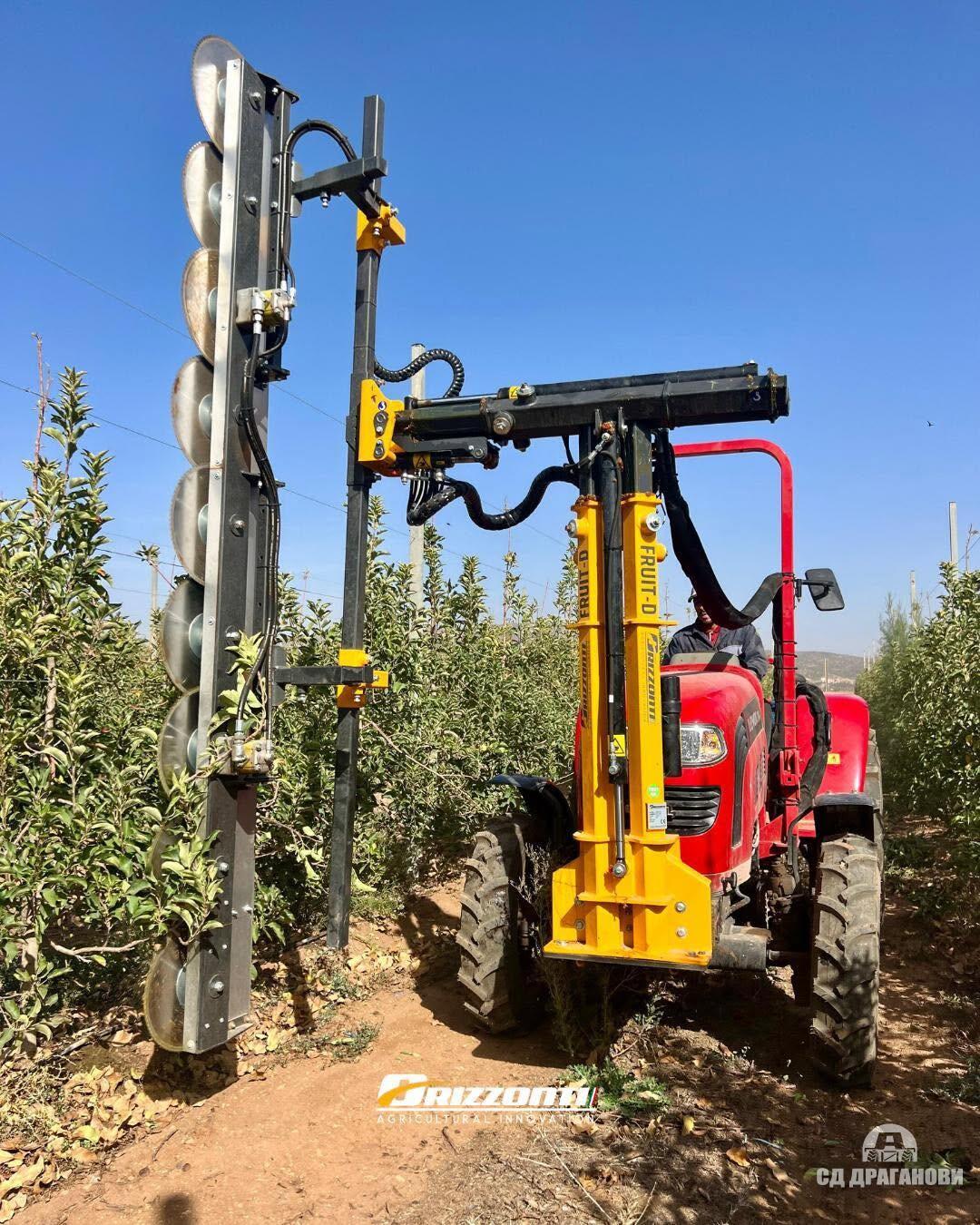

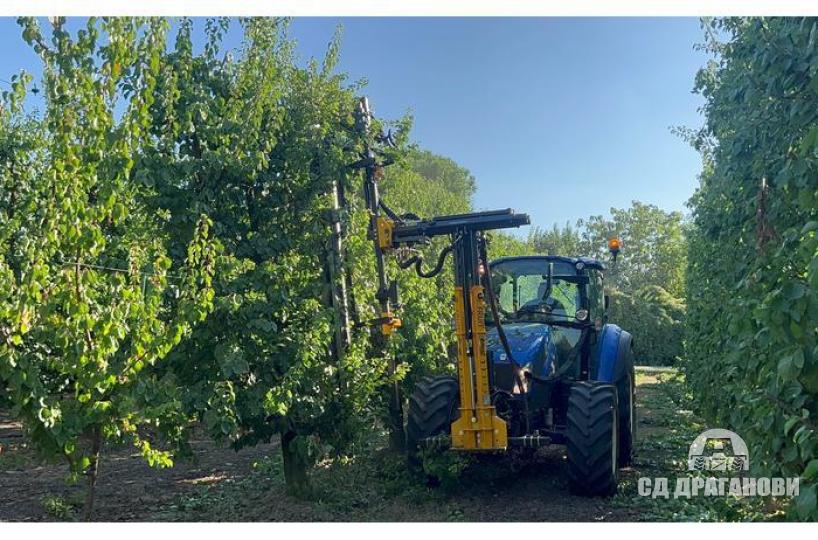

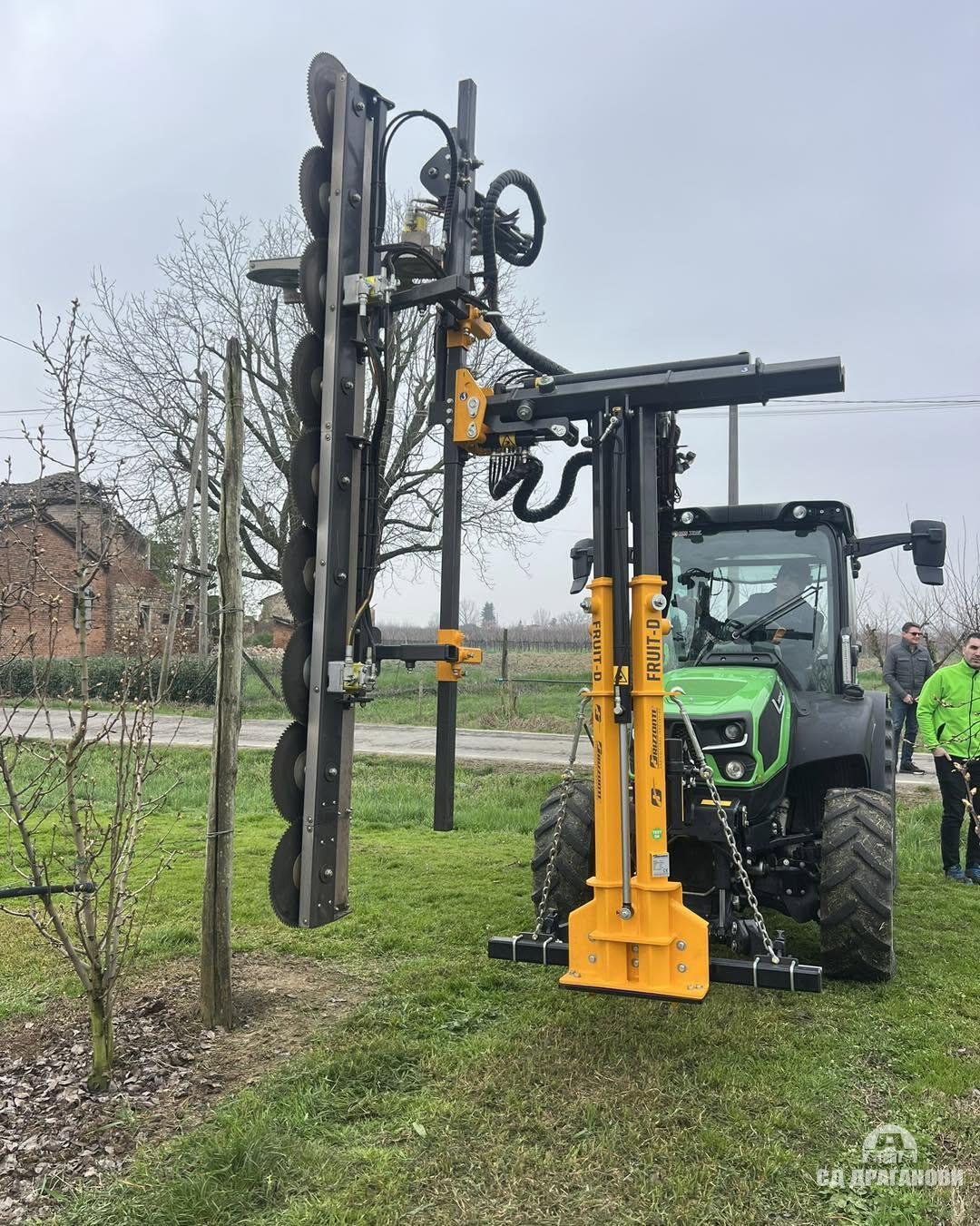

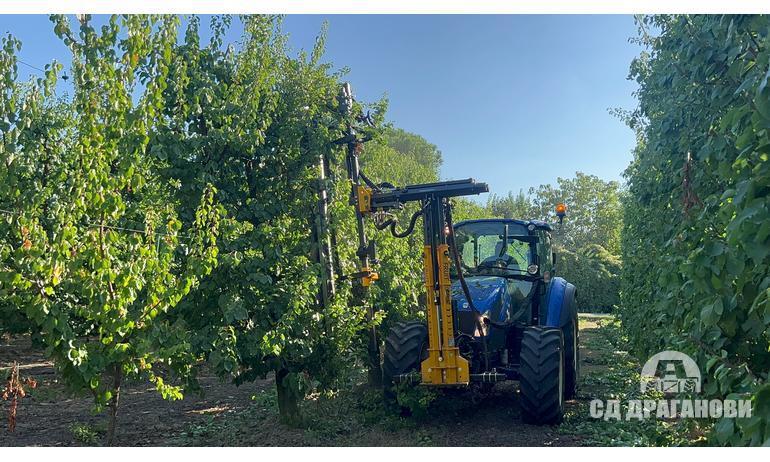

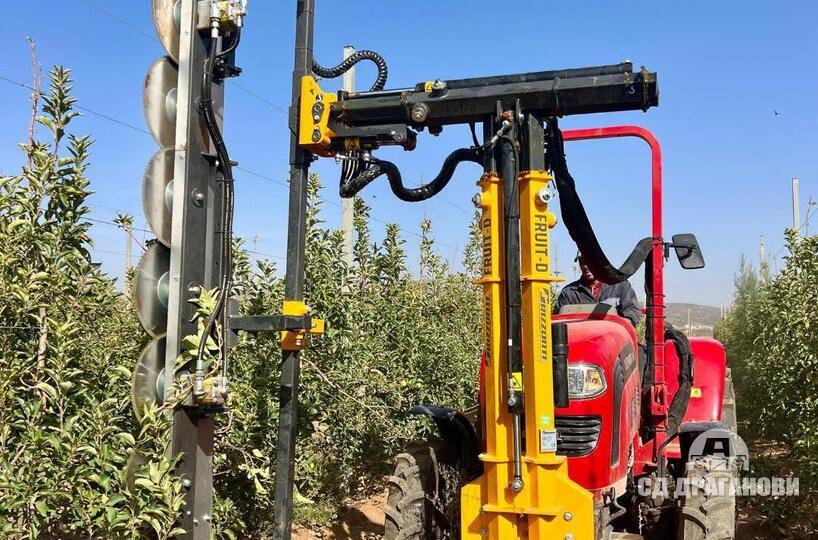

The ORIZZONTI FRUIT-D is a disc orchard pruning machine designed for mechanised pruning in row-planted orchards. It is suitable for apple, peach and other fruit orchards, as well as olive groves trained in trellis systems.

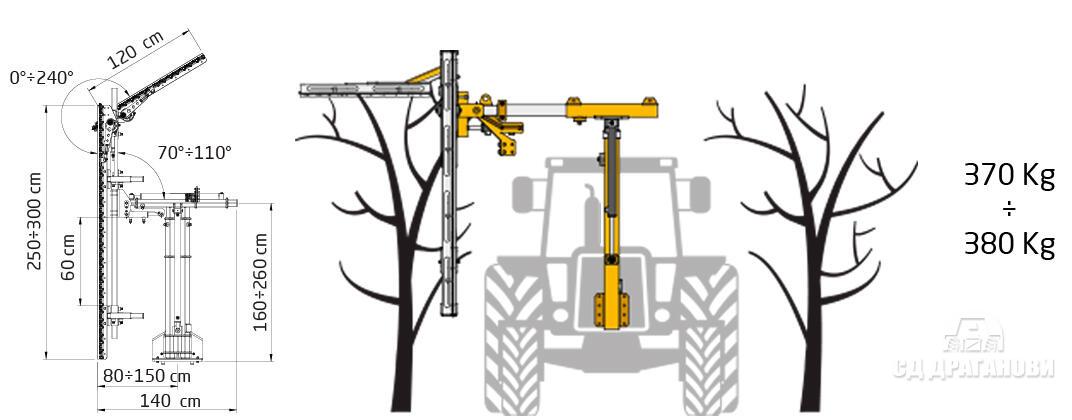

The machine is built on a robust supporting frame with a 45° structure, designed to provide stability during operation and when the machine is raised. Its cutting system consists of vertical and horizontal bars fitted with rotating discs, allowing the sides and top of the tree canopy to be pruned mechanically.

Key benefits

• 40 cm diameter cutting discs – fitted with teeth reinforced with tungsten carbide (Widia) plates.
• Cutting capacity of 5–8 cm in diameter – according to the manufacturer's stated capabilities for the disc system.
• Vertical cutting bar with 6, 7, 8 or 9 discs – different configurations to suit orchard requirements.
• Horizontal cutting bar with 2 or 3 discs – for trimming the top of the canopy.
• Hydraulic drive – powered by one or more hydraulic gear motors.
• Adjustable disc rotation speed – to adapt operation to pruning conditions.
• Hydraulic positioning – multiple movements to adjust the machine's working position.
• Joystick control from the tractor cab – convenient operation of the machine's functions.

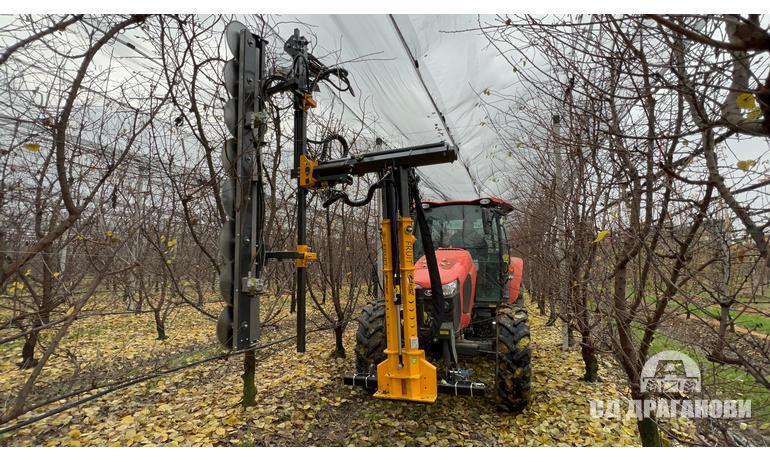

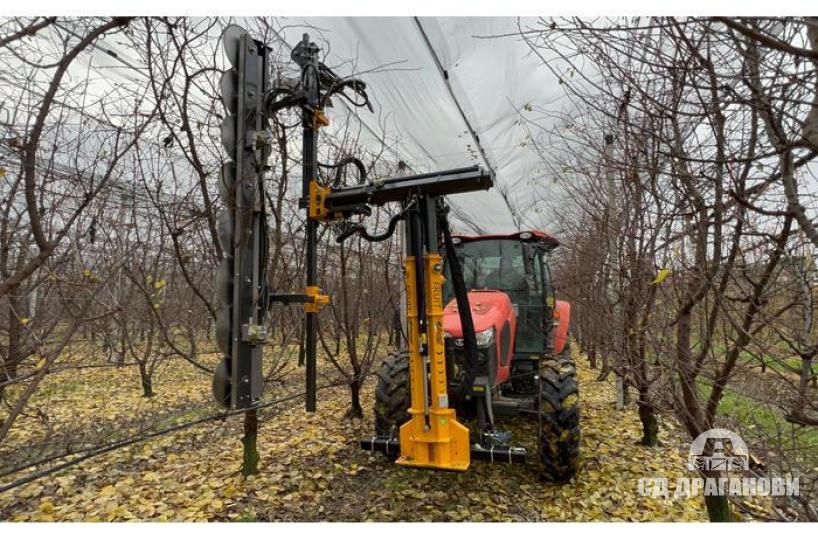

• Safety system for work under anti-hail nets – the upper cutting bar can be equipped with a sensor system.

Cutting system

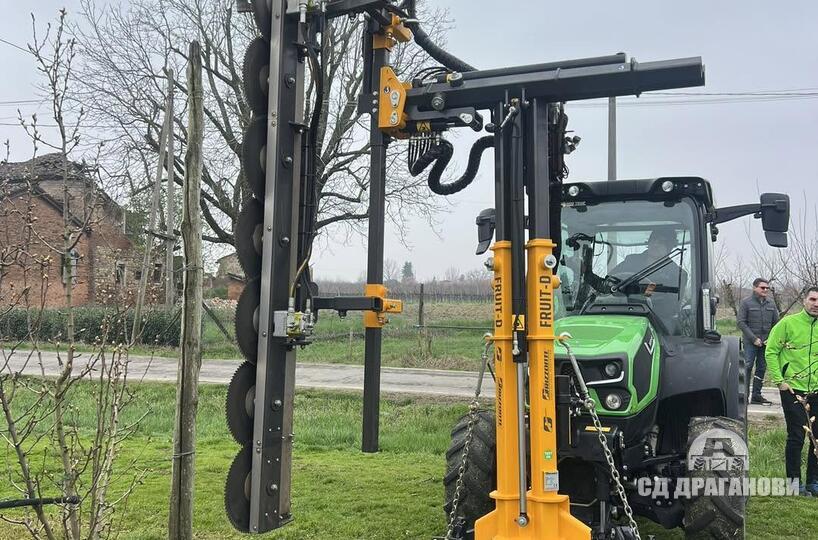

The FRUIT-D features vertical and horizontal cutting bars equipped with rotating discs. The discs have a diameter of 40 cm and reinforced teeth with tungsten carbide (Widia) plates. The discs are hydraulically driven by one or more gear motors, with a belt-and-pulley transmission. The design focuses on cutting efficiency, ease of maintenance and adjustable disc rotation speed.
