ZANON ZD Subsoiler

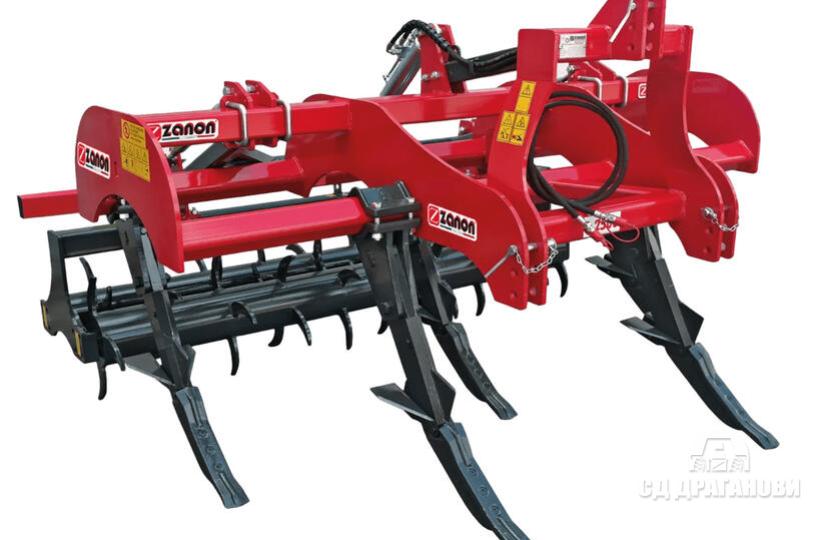

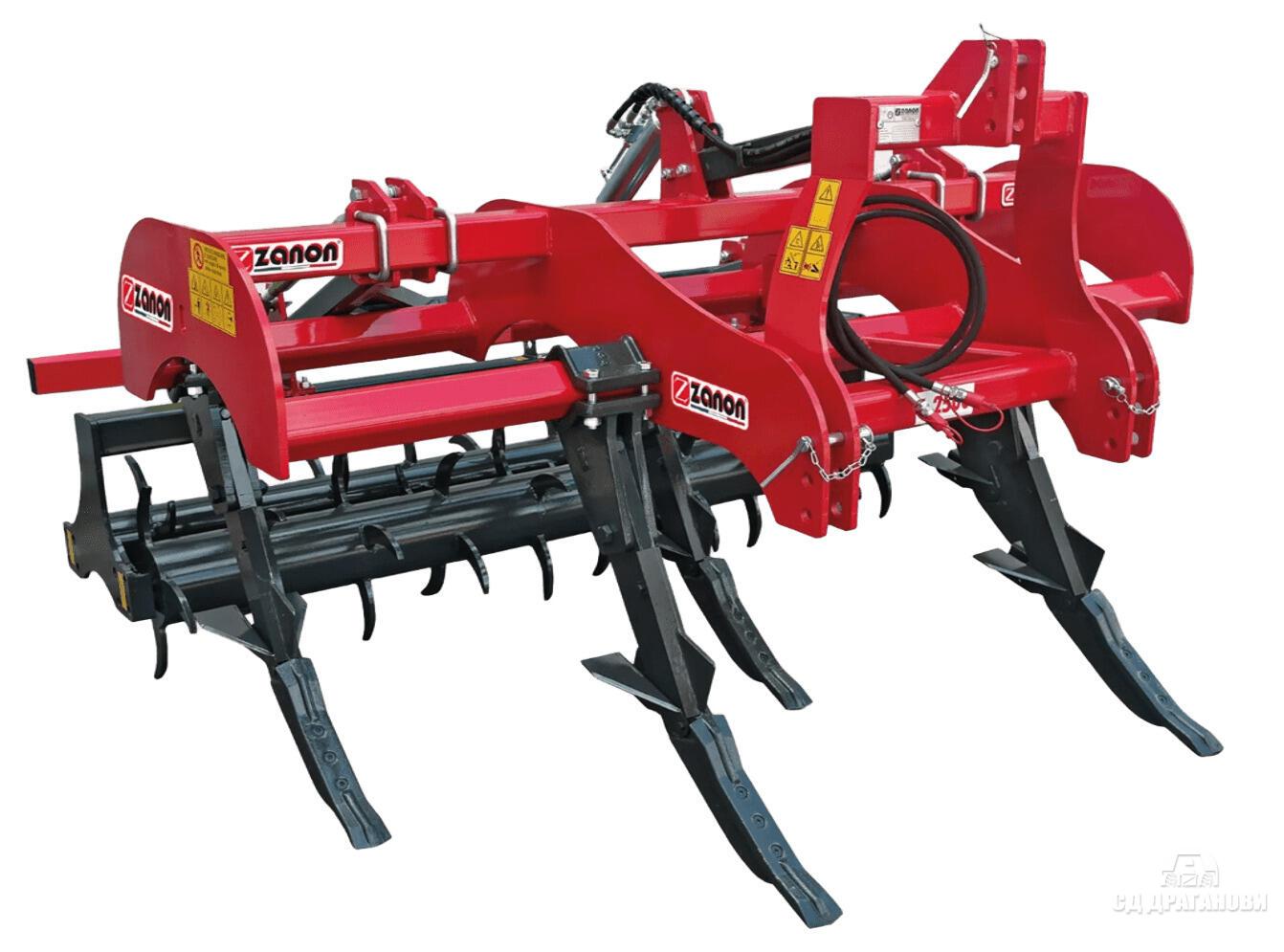

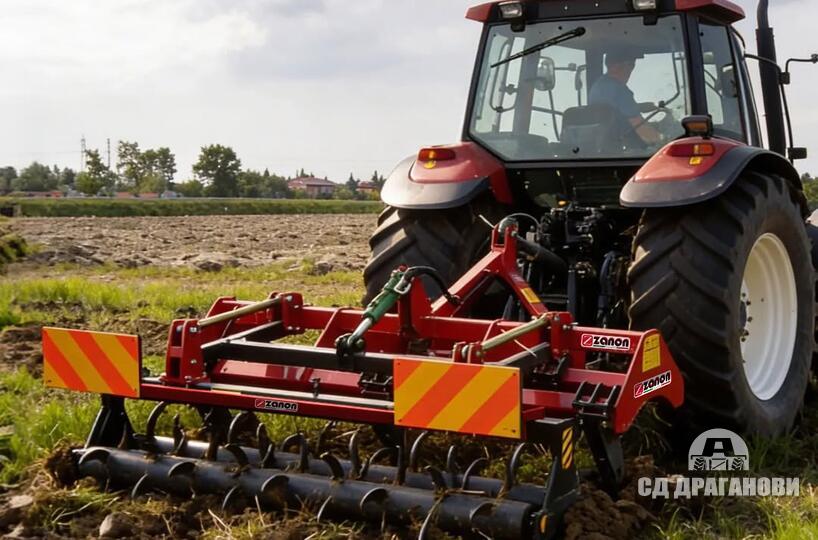

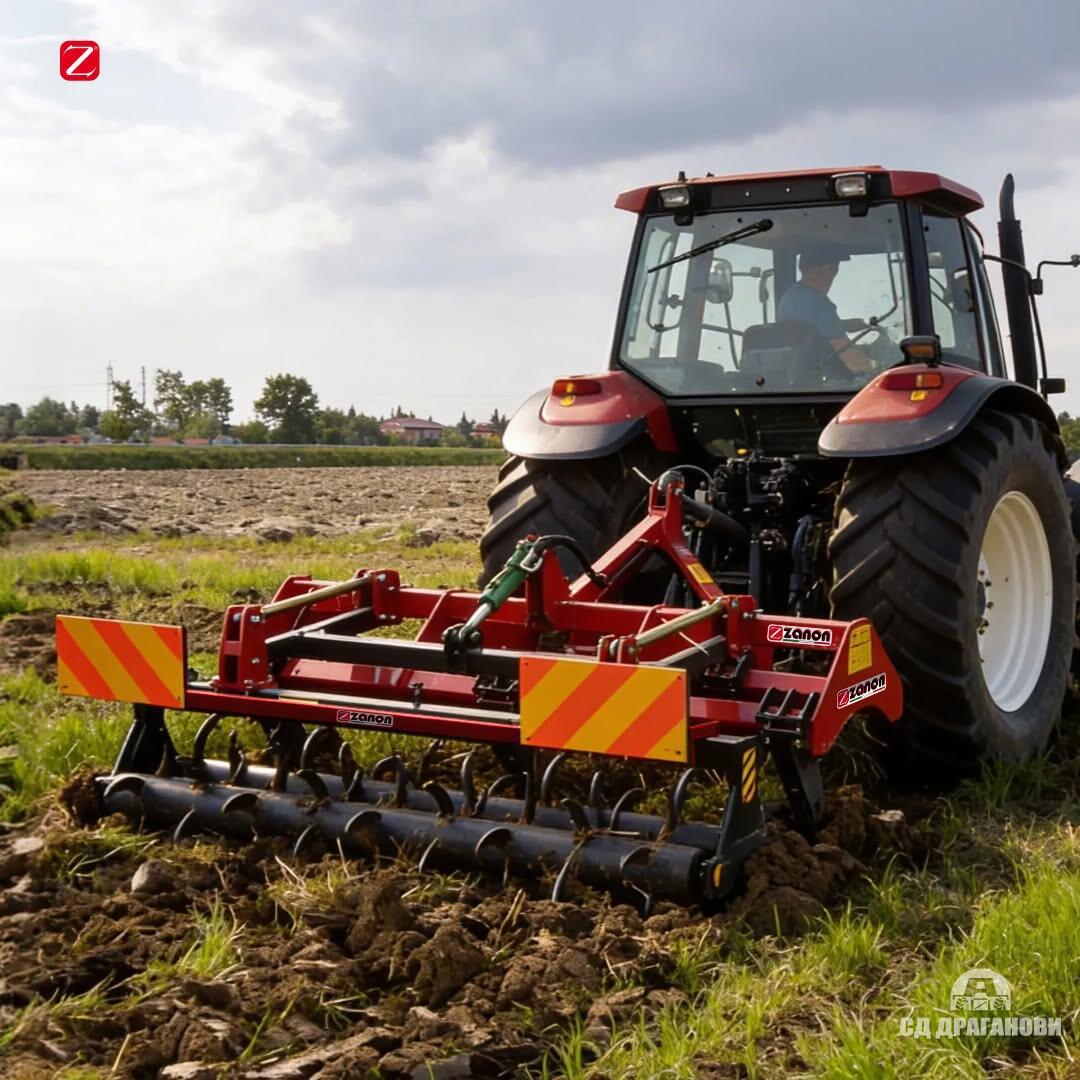

ZANON ZD – Professional Subsoiler for High-Power Tractors

The ZANON ZD is a professional subsoiler designed for high-power tractors and large agricultural farms. Its robust steel frame and specially angled shanks provide uniform soil loosening at working depths of up to 50 cm.

Subsoiling helps reduce surface water accumulation and improves the soil's ability to retain moisture. This can create more favourable conditions for crop development and contribute to improved cultivation results, while reducing the effort and fuel consumption required for soil preparation.

The ZD is available in two configurations: a 250 cm working width with 5 shanks and a 300 cm working width with 7 shanks. Both models are equipped with a hydraulically adjustable rear double roller to help control the working depth.

Key benefits

• Working depth of up to 50 cm – for deep soil loosening.
• Robust steel construction – designed for demanding working conditions.
• Two working-width options – 250 cm and 300 cm.

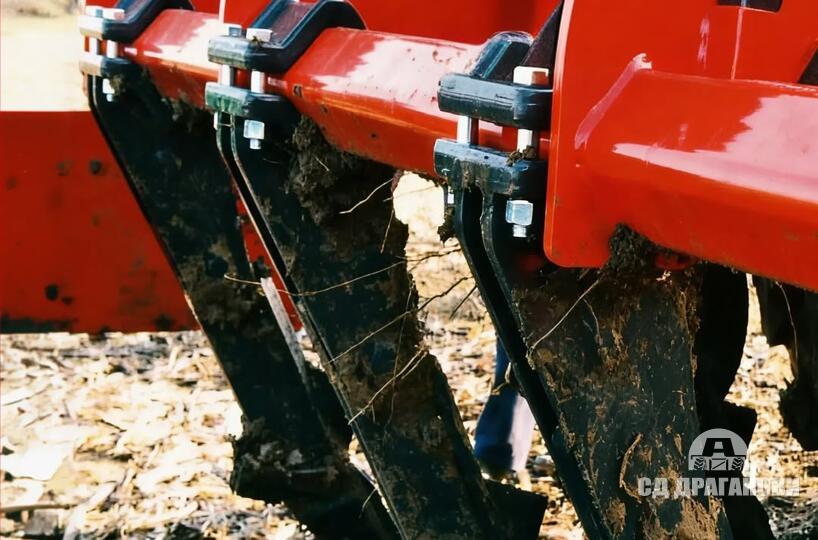

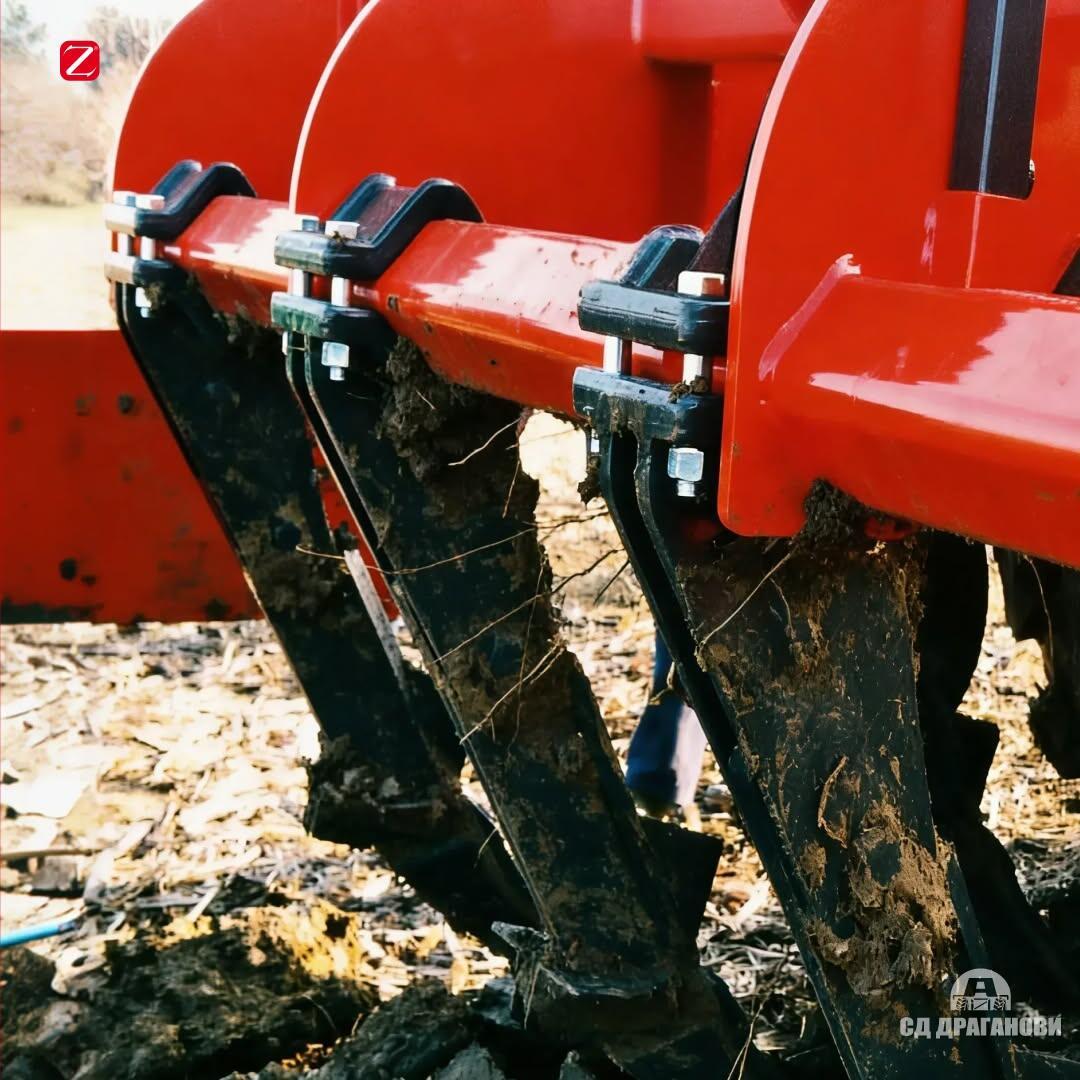

• Overload protection – each shank is fitted with a safety bolt.
• Adjustable shank spacing – to adapt the machine to working conditions.
• Adjustable furrower wings – for customised soil working.

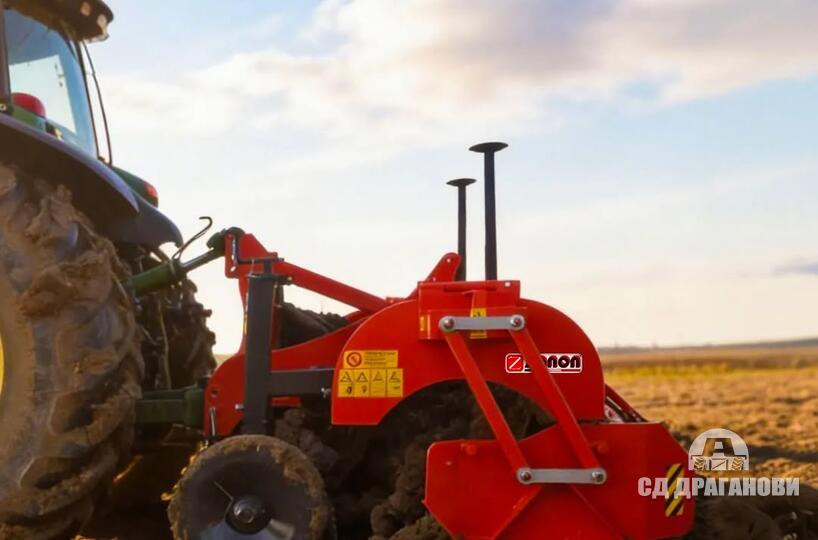

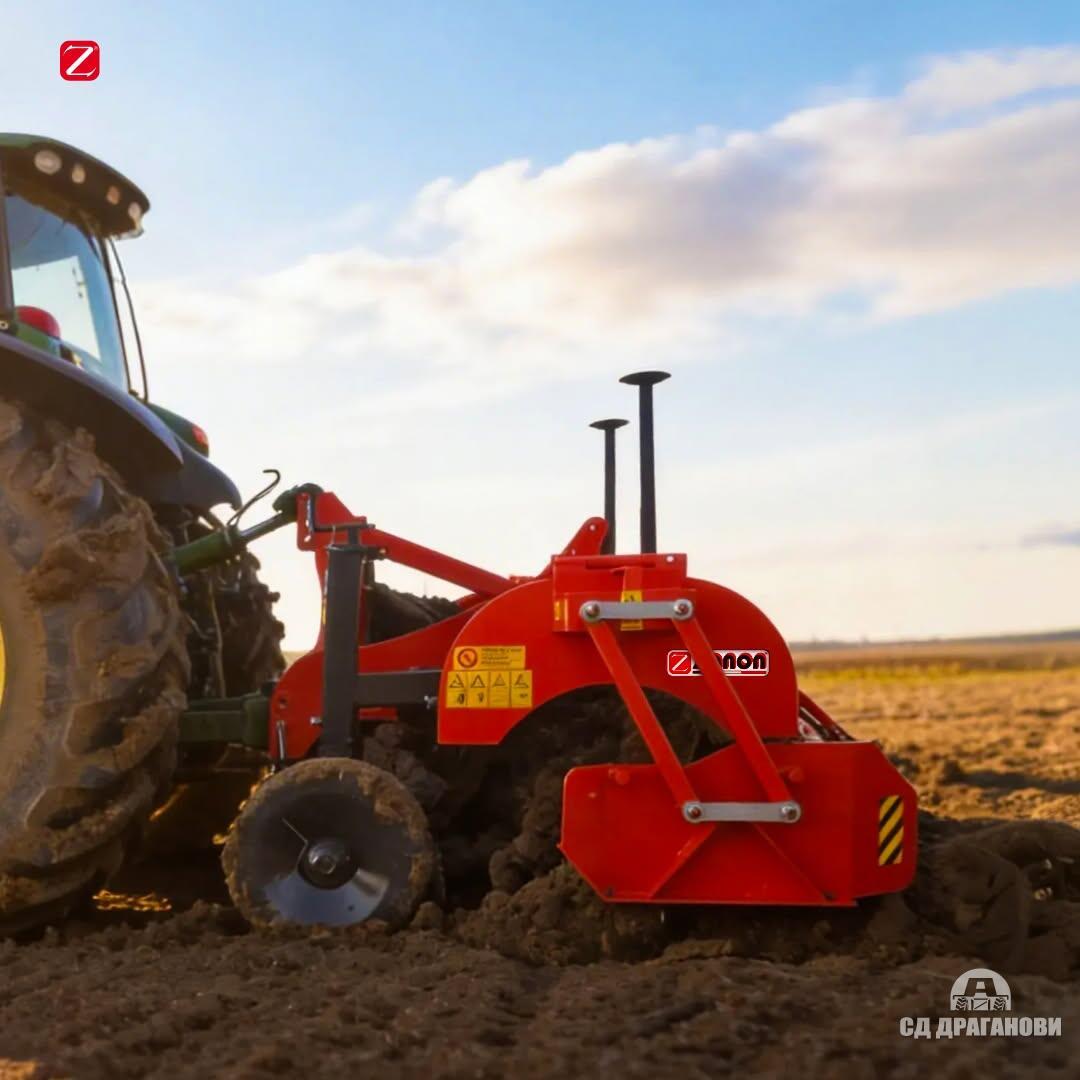

• Hydraulically adjustable rear double roller – for working-depth adjustment.
• Optional equipment available – to suit individual farm requirements.

Standard equipment
Universal three-point linkage, Category II. Shanks with a working depth of up to 50 cm. Fixed blades. Interchangeable ploughshare. Hot-pressed steel brackets. Safety bolt on each shank. Furrower wings with adjustable angles. Adjustable shank spacing. Shank wear protection. Double rear roller, Ø 450–500 mm, with hydraulic adjustment system.

Why choose the ZANON ZD?
The ZANON ZD is a reliable solution for farms requiring effective deep soil loosening. Its robust construction, adjustable shanks and rear double roller allow the machine to be configured to meet the needs of different farming operations.

Contact Draganovi for information about availability, tractor compatibility and the most suitable configuration for your farm.
